Lighting Planning for a DIY COB build

Little update on the controller. I've wired up the main power and power to the cobs. Now I have to bring power to the LRS driver and LDDs with the storm controller to the mono LEDs. Then it's a matter of cleaning up the wires so it all fits inside.

More updates to come.

Cheers


Sent from my LG-H812 using Tapatalk

my eye's, my eye's...:slap:

looking awesome @Raoul Duke ... 2 knobs... I like a box with 2 knobs
Thanks bud. The top knob controls the COBs and bottom one is for the storm x and the mono LEDs. I'm almost done wiring and cleaning everything up, then I can get back to concentrating on the new frame. Having a blast with these projects and I'm super excited to get into my new place. Just over a month away.

Sent from my LG-H812 using Tapatalk

Finally have the wiring finished and I haven't even blown anything up yet... Some finishing touches left to go but everything's ready to go.

Now I can concentrate on the frame.

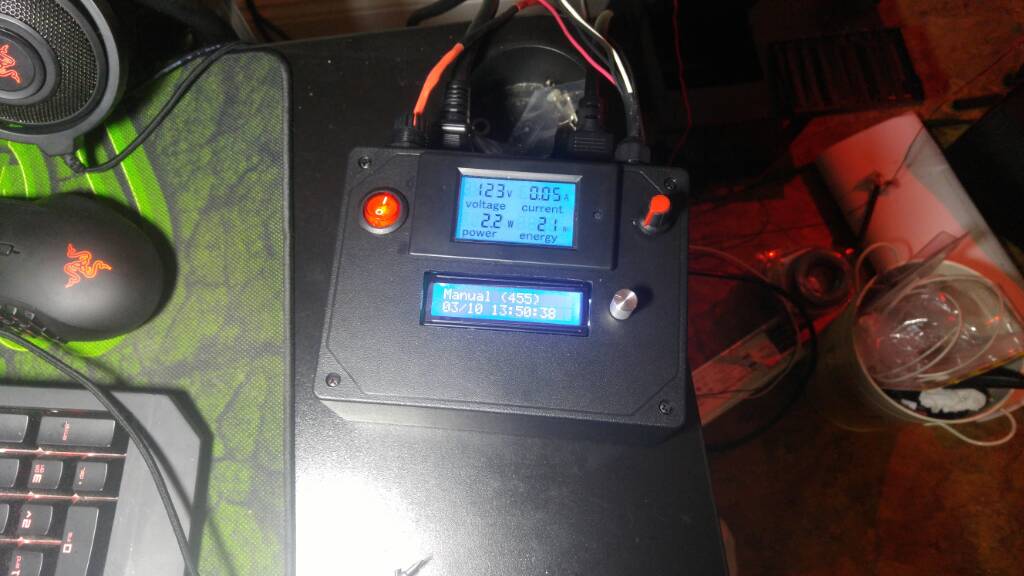

Here's some pics.

Cheers


Sent from my LG-H812 using Tapatalk
