I guess the best way is to spend some time here. I try to show as much as possible as well as offering what I can for advice. My experience with Cree was it works and does a good job but short of the citizens as far as quality goes.

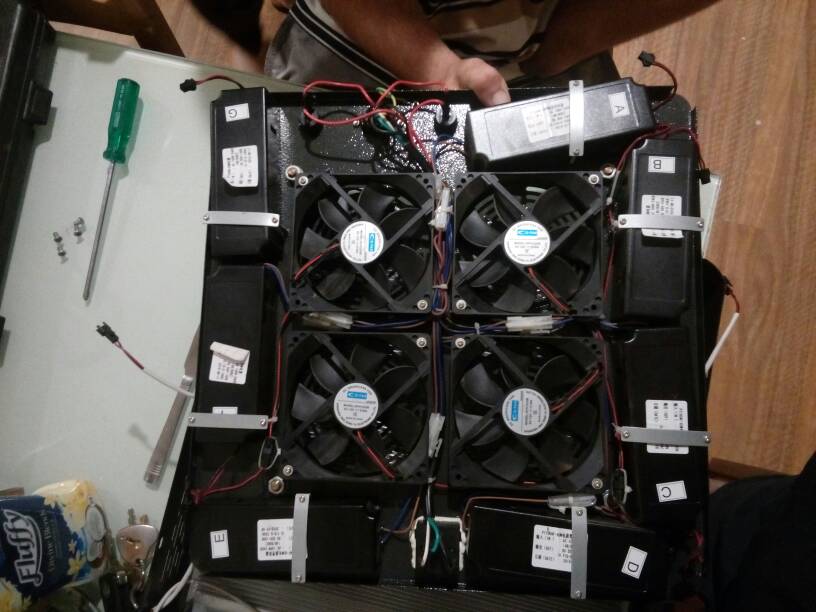

My friend and I are are hacking a mars 2 900 and want to make sure the cobs are suited to the driver before purchasing them. I've built my own light but with a mean well so these drivers are confusing me as to what its total output is. I don't want to make a mistake on someone else's property so I'd thought I'd enlist some authority. Here are the drivers that were hoping to fit with vero 29 se' to fill a 1.2m2 space.
Sent from my HUAWEI LYO-L02 using Tapatalk
Sent from my HUAWEI LYO-L02 using Tapatalk
I’m not sure the voltage on the vero’s. If they are less than 50v you can run 2 per driver. Looking at the light I’m not sure you would need to though. 7 drivers you could run one cob per driver and that’s a lot of light.My friend and I are are hacking a mars 2 900 and want to make sure the cobs are suited to the driver before purchasing them. I've built my own light but with a mean well so these drivers are confusing me as to what its total output is. I don't want to make a mistake on someone else's property so I'd thought I'd enlist some authority. Here are the drivers that were hoping to fit with vero 29 se' to fill a 1.2m2 space.
Sent from my HUAWEI LYO-L02 using Tapatalk
What about the citizens? You could do 1812’s or 1818’s at 35 watts per cob and that would be your best bet and probably cost less.
Citizens though great aren't as available to us and we want the vero se solderless connection, I'm using some 18s now and though they don't seem as bright as my old 1212s (that I butchered) they are so darn easy to use and come with a ten year warranty and are still relatively cheap even compared to citizens.
The 29s come in 39, 52 and 69v. I was going with the train of thought that using up the drivers output was the goal, so 69v version. Problem is that requires 9 or 10 cobs to use the 700v available and we don't have the surface area or money for that.
Were thinking five 29s of the most suited v variation, with one or two connected too 100-200w* worth of driver lead to veg switch, and the rest wired with most efficient number of driver paired to the remains cobs on the bloom switch.
By removing drivers or swapping fv choice could I lower the w per cob to 50 rather than the 0.745×100=74.5w? Looking at the sum and driver specs I'm guessing no.
Sounds okay in my head but next step is buying and building so I want to reach out. What do you think mate?
Thanks for the time and effort mate, now and in the past. I really appreciate it.
Sent from my HUAWEI LYO-L02 using Tapatalk
Were planning on using a new plate to save that hassle, good to know sand paper can recover the old ones though. Designating drivers to cobs is what we are going to do, just not sure how to do it %100.
Sent from my HUAWEI LYO-L02 using Tapatalk
@Cranky ahh so you've just wired the old plates quick connects to the new cobs terminals then connected them to the drivers quick connects? How do we keep the veg bloom buttons in function then?
Sent from my HUAWEI LYO-L02 using Tapatalk
Came out great! The led solder does tear up the sand paper but that aluminum isn’t super cheap either. Better to save it than pitch it.
