Deep Water Culture Basics - Bubbleponics

Sharing some things I have learned doing Deep Water Culture with cannabis.

Technically what I use is called “Bubbleponics”. First your environmental needs must be met - light, temperature, humidity and air movement all need to be in range for plants to grow well. I will assume you understand these basic concepts. The rules for a good DWC are simple but not very forgiving. Plants respond adversely quickly to something out of range. The good thing is that they will also respond well to a correction quickly. DWC is an everyday task; in fact checking your plants many times a day can keep you ahead of needs.

Two tools that you cannot do without are a good PH meter and a EC meter; both should be equipped with a temperature gauge as well. Maintain them and replace them on the vendor’s schedule.

The five basic components:

1. Water. You could spend a lifetime trying to learn about water for plant growth but let’s keep it simple. Most people can use their tap water as long as the beginning PPM is 200 or less. If your water goes over this you will need to mix it with distilled or Reverse Osmosis water to get it below 200 PPM. Use a float valve and top off bucket to keep the water level in your reservoir consistent even small fluctuations can cause stress. Set the water level 1” – ½” below the bottom of your net pot. Aerate your water for a day or two before you intend to use it. This will help precipitate calcium carbonate out of the water and make it easier to control your PH. I just use my top off tank for this. The perfect reservoir water temperature is 68°F. This is the temperature that water holds the most dissolved oxygen. Do not use copper, brass or aluminum anywhere in your system; not even the tiniest fitting.

2. Air. Roots need air. An aquarium air pump and air stones provide this critical component. I always use two pump/stone combos for redundancy. Losing aeration even for a short period can be problematic. The smaller the bubbles are coming out of the stones the better. I use a UPS battery back-up on my air pumps. The volume of airflow needs to be high enough to saturate the water but not be so violent that the roots are damaged. Smaller bubbles allow more airflow with less violence.

3. Nutrients. Just make this a no brainer. Unless you have a lab and the skills to use it; choose ONE nutrient vendor whose products are built from the ground up for cannabis hydroponics and use their entire line. Do not mix and match. Vendors spend millions of dollars and years developing their products to work with each other. Take advantage of that. Follow their feeding schedule. Change the water/nutrient solution every week – without fail. Learn about Liebig’s law of the Minimum to understand why you are doing this. Look at the Liebig’s Barrel to visualize what we are talking about here. DO NOT MIX NUTRENTS INTO THE RESERVOIR; mix them in a separate container using water that has been aerated for a day or two following vendor instructions the day before the reservoir refresh. Doing this ahead of time will make it much easier to get the PH balanced and stable. A suction pump will be worth its weight in gold to help evacuate the reservoir for a refresh. Many product lines can and should be used at 50% of the vendor’s chart strengths in DWC but not all of them. Do a little research on your chosen brand.

4. PH. PH has absolutely everything to do with the uptake of nutrients into the plant. Let it range from 5.7 to 6.2 in DWC. This will allow the different components to move through the best uptake zones for that nutrient. Check the PH every day even multiple times per day is better. Roots not only take water and nutrients in they also exude substances that can dramatically change the PH in the reservoir in a very short period of time. I am talking hours here not days. Mix PH buffers into some water before adding to the reservoir to prevent burning the roots. Make small changes at a time. One full point is too much (5.2 to 6.2). It takes practice and vigilance to maintain PH in the proper range. PH problems have caused me more issues than all of the other environmental factors combined. The minute you take your eye off this it will bite your plants in the ass!

5. Botanicare HydroGuard. The only additive outside of your chosen nutrient regime I recommend. It is a must have. I would not even buy a bucket before I had this in stock. Root Rot is totally preventable with this. I live where it is not possible to maintain the reservoir temperature below 78°F in the summertime and it has gone as high as 82°F. The ability for water to keep oxygen saturation at that high of a temperature is minimized. Think stagnant pond! I have grown great plants totally root rot free using HydroGuard under these conditions. High temperatures are not the only thing that can cause root problems. Botanicare HydroGuard is a basic component to DWC. I am not affiliated with or compensated in any way for this endorsement by anyone except my happy plants with huge colas.

I have tried several ways to get a plant started. Top feeding seeds planted in small rock wool cubes or Park’s Bio Dome sponges supported in the net pot by PH balanced clay pebbles until the roots get down into the reservoir a couple of inches has worked best for me. Then stop top feeding to prevent crown rot.

So there you have it. Now 10,000 people will take issue with something I have laid out here and I may agree with many of them. I have moved on to growing hydroponically in rock wool cubes because it solves my oxygenation problems associated with high summer reservoir temperatures. I am telling you now that if I did not have heat issues in the summer I would still be growing DWC!

Last edited:

    Bradtd89

    Points: 10
    For anyone who needs a quick refresh in doing DWC or even a fresh new beginner, your post is very helpful. Thank you. I have a similar system myself with the same temp problems where I live.

    VitaMan

    Points: 10
    Fist DWC. Made a lot of these mistakes....and found some of the solutions you wrote about.
Perfect! :thumbsup: It is paying attention to the details that makes one farmer more successful than another.
I appreciate your guys experience and the time you take to share the knowledge. Also side note; bulkheads are like $15.99 a piece and you’d still need an elbow. I decided to buy 1/2” male, 1/2” shutoff, 1/2” 90 elbow for water level and to function as easy drain, shut off the valve turn elbow 90* left for DTW. Bought pack of 8 O-Rings, placing one on every thread connection (3 Rings per shutoff/water level). Basically built 4 bulkheads under the price of one. ‍

@Mañ'O'Green hey it’s me again. Bet you regret accepting me now that I’m like an aphid, always showing up and hard to get rid of.

I’m having a pretty major issue and it may cost me half my seeds. I knew I needed either new PH up or new ppm and ph meters, after having a ph that continues to return to 6.8 against loads of ph up. So to be safe i got new PH up and down, and new meters.
Here’s the problem. The new meters come with Buffer Solution for calibration (for ph only ppm don’t seem to need or have an ability to calibrate). Well I discovered that my old ph meter was the most likely issue as it was nearly 2.2 points off! Trashed that one and using my newly calibrated one. Problem now lies with tds meters!!! Old one (seemingly trusty) is reading 200 some parts above my brand new one. What the fuck is going on here I can’t be this careful to have such a discrepancy. Recommendations?

@Mañ'O'Green hey it’s me again. Bet you regret accepting me now that I’m like an aphid, always showing up and hard to get rid of.

I’m having a pretty major issue and it may cost me half my seeds. I knew I needed either new PH up or new ppm and ph meters, after having a ph that continues to return to 6.8 against loads of ph up. So to be safe i got new PH up and down, and new meters.
Here’s the problem. The new meters come with Buffer Solution for calibration (for ph only ppm don’t seem to need or have an ability to calibrate). Well I discovered that my old ph meter was the most likely issue as it was nearly 2.2 points off! Trashed that one and using my newly calibrated one. Problem now lies with tds meters!!! Old one (seemingly trusty) is reading 200 some parts above my brand new one. What the fuck is going on here I can’t be this careful to have such a discrepancy. Recommendations?
I felt so in control this time and prepared and before I’ve even propagated it’s a burning dumpster fire

I felt so in control this time and prepared and before I’ve even propagated it’s a burning dumpster fire
@Mizzo81 any suggestions? Help a noob out. At this point I’d assume to go off of the higher ppm reading that way I don’t burn them to death. From my studies I hear under feed beats over. Sucks tho man cuz I want to be optimized not poking along 2-300 ppm under that

@Mañ'O'Green hey it’s me again. Bet you regret accepting me now that I’m like an aphid, always showing up and hard to get rid of.

I’m having a pretty major issue and it may cost me half my seeds. I knew I needed either new PH up or new ppm and ph meters, after having a ph that continues to return to 6.8 against loads of ph up. So to be safe i got new PH up and down, and new meters.
Here’s the problem. The new meters come with Buffer Solution for calibration (for ph only ppm don’t seem to need or have an ability to calibrate). Well I discovered that my old ph meter was the most likely issue as it was nearly 2.2 points off! Trashed that one and using my newly calibrated one. Problem now lies with tds meters!!! Old one (seemingly trusty) is reading 200 some parts above my brand new one. What the fuck is going on here I can’t be this careful to have such a discrepancy. Recommendations?
R they set to the same scale. 500 scale or 700 scale. I use EC (500ppmscale) I’m not a hydro expert but have some equipment.

Yep, probably the scale the EC meter is reading in is Hanna and the old one was Truncheon. Here is a conversion chart.

ScreenHunter_260 Jun. 11 20.24.jpg

Appreciate the responses @Mañ'O'Green @Mizzo81 ; thankfully I discovered both meters can and do cycle modes but the discrepancies remained. Then to trouble shoot I poured a cold glass of water and used the temp gauge on both tds meters; aha! My old one read 80* on a cold drink so it’s shot. And come to think of it I was super ripped one night and took the cap off to measure only to not take cap off it but the top and dunked the motherboard in. Now it all makes sense. Anyways I’m gonna sit back and lite one up with friends like you guys to help. Lmao. For the record it turns out I germed my seeds in 2.5 maybe even lower PH due to unknowingly using broken ph Meter (didn’t dunk that one when hi tho). So if they survive they’re my acid queens ❤️

Thanks for this. Great advice. A couple questions.. @Mañ'O'Green and anyone else

You mention air bubbles and pump is important. I upgraded the two port pump that came with my dwc (29gph) to a Vivosun 332 gph pump. Also added two 4x2 inch stones. Is that overkill?
also regarding changing the water weekly, is it best to have a pump to drain the existing water and than add the new water to the existing pot or should I fully clean the old pot first before. Or do both.
Thanks all
Will

Thanks for this. Great advice. A couple questions.. @Mañ'O'Green and anyone else

You mention air bubbles and pump is important. I upgraded the two port pump that came with my dwc (29gph) to a Vivosun 332 gph pump. Also added two 4x2 inch stones. Is that overkill?
also regarding changing the water weekly, is it best to have a pump to drain the existing water and than add the new water to the existing pot or should I fully clean the old pot first before. Or do both.
Thanks all
Will
Yeah it has more to do with bubble size. You do not want it to be violent in the res. as that will tear-up tender roots.
Bubble size..jpg
ScreenHunter_272 Jul. 31 18.10.jpg


Your pump may be more than you need?

I have used these in the past and they were ok but I like the newer ones better:

ScreenHunter_271 Jul. 11 00.35.jpg


These cost more but smaller bubbles?

ScreenHunter_298 Sep. 08 17.33.jpg


You need a suction pump to drain the reservoir. It gets nearly impossible to move the plant when it gets big and DWC grows big plants.

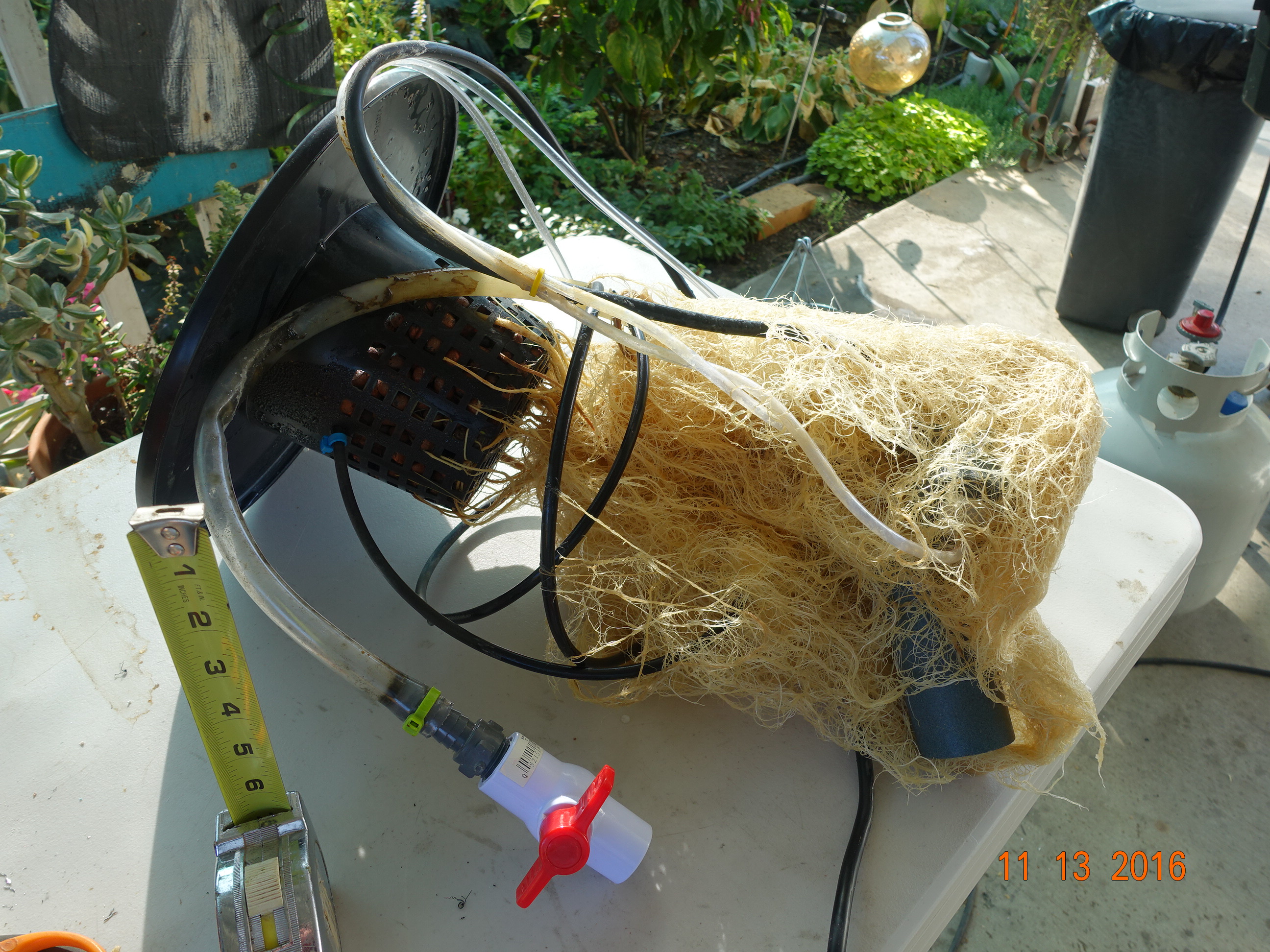

This is one plant in a 5 gallon DWC and its roots.


Last edited:
