    IH Driver kit with "Dry Herb" option where ferrous metal is SEALED OFF its cannabic path, almost ideal for purists except the item simultaneously appears to lack true convective mode IMO.
  2. Egzoset

    ISpire "The Wand" INDUCTION device

    [ https:// www.prweb.com/releases/ispire_launches_first_of_its_kind_induction_heating_enail_dab_rig/prweb17832614.htm ] ISpire launches first of its kind induction heating Enail dab rig (2021-Apr-20) Learn more at https:// www.getispire.com Google Images: ISpire "The Wand" INDUCTION device...
  3. Egzoset's 1-Phase 8-Poles Royer-OK WorkCoil(s) Concept for safe AC-DC Analog & Digital Probes plus Protection

    Egzoset's 1-Phase 8-Poles Royer-OK WorkCoil(s) Concept for safe AC-DC Analog & Digital Probes plus Protection

    The cognitive process starts bearing fruit!
  4. Egzoset's 1-Phase 8-Poles Royer-ready WorkCoil(s) Setup with safe A.C. & D.C. Sensor(s) plus LEDs (2-Sides PCB Routing)

    Egzoset's 1-Phase 8-Poles Royer-ready WorkCoil(s) Setup with safe A.C. & D.C. Sensor(s) plus LEDs (2-Sides PCB Routing)

    Intermediary step in cognitive process...
  5. Egzoset's 1-Phase 8-Poles Royer-ready WorkCoil(s) Setup with safe A.C. & D.C. Sensor(s), etc!

    Egzoset's 1-Phase 8-Poles Royer-ready WorkCoil(s) Setup with safe A.C. & D.C. Sensor(s), etc!

    Just a few hours later, having it put in communicable form helps further with the cognitive process apparently. Which is a benefit of getting prepared vs not...
  6. Egzoset's 4-Wires-per-U-Core WorkCoil System (Double-Sided PCBoard Routing)

    Egzoset's 4-Wires-per-U-Core WorkCoil System (Double-Sided PCBoard Routing)

    PCBoard layout matters in consideration. Like inclusion of close-loop control via measuring voltage of both the workcoil's electrical AND magnetic fields... Etc.
  7. Egzoset's Single-Side Flat Magnetics IH-Driver scenario integrating Royer secondaries and more...

    Egzoset's Single-Side Flat Magnetics IH-Driver scenario integrating Royer secondaries and more...

    Removal of an extra-bending operation made sense and even resulted in many more possibilities... Not just a Royer secondary, but also as AC sensor measuring the magnetic field + susceptor response, while voltage across a power resistor conveniently provides an electric-field voltage (Prot., PLL)...
  8. Egzoset's 2.5-D Versatile IH WorkCoil(s) Assembly for LAVACapsule concept - Still 4 Turns per U-Core *if* AWG#16 substitute

    Egzoset's 2.5-D Versatile IH WorkCoil(s) Assembly for LAVACapsule concept - Still 4 Turns per U-Core *if* AWG#16 substitute

    Multi-Phase/Multi-Poles modular design for PCBoard accomodating many "stuffing" options.
  9. Egzoset's 2-Sides ~6.5 sq. cm Transparent View on LAVAWand-compatible 2.5-D IH WorkCoil(s) Assembly.

    Egzoset's 2-Sides ~6.5 sq. cm Transparent View on LAVAWand-compatible 2.5-D IH WorkCoil(s) Assembly.

    About getting polarities right (which is which?!)... Please help pass the word: https:// i.postimg.cc/cC0WGXbP/Egzoset-s-2-Sides-6-5-sq-cm-Transparent-View-on-LAVAWand-compat-2-5-D-IH-Work-Coil-s-Assy-640x6.png
  10. Egzoset's Two-Sides ~6.5 sq. cm PCBoard, Transparency View on LAVAWand-compatible 2.5-D IH WorkCoil(s) Assembly

    Egzoset's Two-Sides ~6.5 sq. cm PCBoard, Transparency View on LAVAWand-compatible 2.5-D IH WorkCoil(s) Assembly

    A versatile Flat Magnetics/Multi-Level Switched-Capacitor(s) Class-D solution creating/enhancing fault-tolerance, by elimination of potential compounded risk factor from typical power contacts MUTIPLICATION around AMOVIBLE series-connected Battery cells (4 contacts if 2 cells, or 6 for 3!)...
  11. Egzoset's Concept of a Flat 2.5-D composite U-Core(s) WorkCoil Assembly (2021-Jan-20)

    Egzoset's Concept of a Flat 2.5-D composite U-Core(s) WorkCoil Assembly (2021-Jan-20)

    Alt. source: https://i.postimg.cc/Px8sxcbm/Egzoset-s-Concept-of-a-Flat-2-5-D-composite-U-Core-s-Work-Coil-Assembly-2021-Jan-20-420x440.png
  12. Egzoset's U-Core Alt. Windings for Flat 9.5 mm Magnetics with 5 mm (dia.) Core {2021-Jan-19}

    Egzoset's U-Core Alt. Windings for Flat 9.5 mm Magnetics with 5 mm (dia.) Core {2021-Jan-19}

    Alt. source: https://i.postimg.cc/fLVVHGPS/Egzoset-s-U-Core-Alt-Windings-for-Flat-9-5-mm-Magnetics-with-5-mm-dia-Core-2021-Jan-19-480x26.png
  13. Egzoset's Alt. U-Path Windings for Flat 1cm Magnetics (less PCB) - 5mm dia. Flux-Concentrating Cores

    Egzoset's Alt. U-Path Windings for Flat 1cm Magnetics (less PCB) - 5mm dia. Flux-Concentrating Cores

    An idea to help make it slim, eventually, by bringing the 2 poles on same side while the other is bridged using some "U" shaped core... Paving the way to a reasonably thin 2.5-D WorkCoil Assembly (e.g. with pseudo "Z" axis, by allowing multiple convenient workcoil juxtapositions - in principle).
  14. Consumption Modes - Skills vs Power - Egzoset's Bi-Energy Target Applications Range

    Consumption Modes - Skills vs Power - Egzoset's Bi-Energy Target Applications Range

    Where i wish to be, eventually.
  15. Infineon MERUS MA120x0(P) Multilevel Class-D Filterless Cascade Topology with i2C Error Status

    Infineon MERUS MA120x0(P) Multilevel Class-D Filterless Cascade Topology with i2C Error Status

    A smart chip normally used in auto-radio/domestic "Digital-Audio" (Class-D) applications.

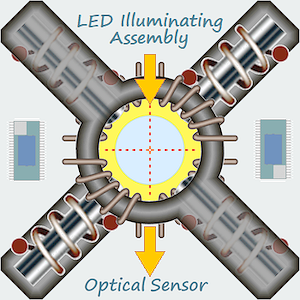

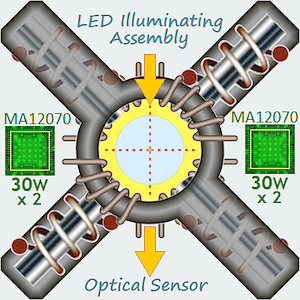

  16. Infineon MERUS MA12070 30 Watts x 2 (per chip) per half of Dual-Band WorkCoil Assembly

    Infineon MERUS MA12070 30 Watts x 2 (per chip) per half of Dual-Band WorkCoil Assembly

    2 separate Flux Concentration Paths & their associated Multilevel Class-D power chips...
  17. Raspberry Pi 400 - GPiO External Extension Port

    Raspberry Pi 400 - GPiO External Extension Port

    That's essentially a Linux-compatible quad-core 64-bits 1.8 GHz computer in a keyboard with WiFi/BT5, GigaBit EtherNet, USB2 + USB3, USB-C PSUnit, micro-HDMi (2x), 16 GB micro-SD Flash drive for preinstalled Raspberry Pi OS, externally-accessible 40-pins General Purpose i/o (GPiO) extension port...

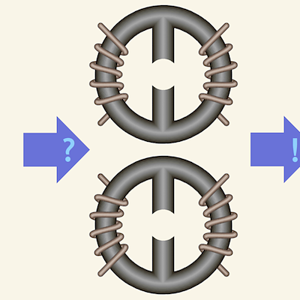

  18. Egzoset's Twin E-core Air-Gap 1-Phase 2-Poles Ferrite Layout - Bifilar RF Choking (2020-Oct-22).

    Egzoset's Twin E-core Air-Gap 1-Phase 2-Poles Ferrite Layout - Bifilar RF Choking (2020-Oct-22).

    There's 2 ways to connect toroïd coils (so the final circuit will pass D.C. while attenuating A.C.) depending on how its windings were performed, plus 2 more if only a simple inductor will do; a 3rd type of setup removes the whole notion of magnetic poles and hence a need to pair them: go bifilar!

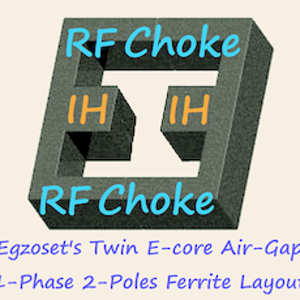

  19. Egzoset's Twin E-core Air-Gap 1-Phase 2-Poles Ferrite Layout (2020-Oct-22).

    Egzoset's Twin E-core Air-Gap 1-Phase 2-Poles Ferrite Layout (2020-Oct-22).

    Schematized principle to communicate some basics.
  20. Egzoset's 7x7 cm Eddy-Curie Semi-Toroïd Duplex Cardan-Topology IH Driver with RF Chokes (2020-Oct-20)

    Egzoset's 7x7 cm Eddy-Curie Semi-Toroïd Duplex Cardan-Topology IH Driver with RF Chokes (2020-Oct-20)

    A loaded concept implementing double-functions...
