Egzoset's Twin E-core Air-Gap 1-Phase 2-Poles Ferrite Layout - Bifilar RF Choking (2020-Oct-22).
Egzoset

Egzoset's Twin E-core Air-Gap 1-Phase 2-Poles Ferrite Layout - Bifilar RF Choking (2020-Oct-22).

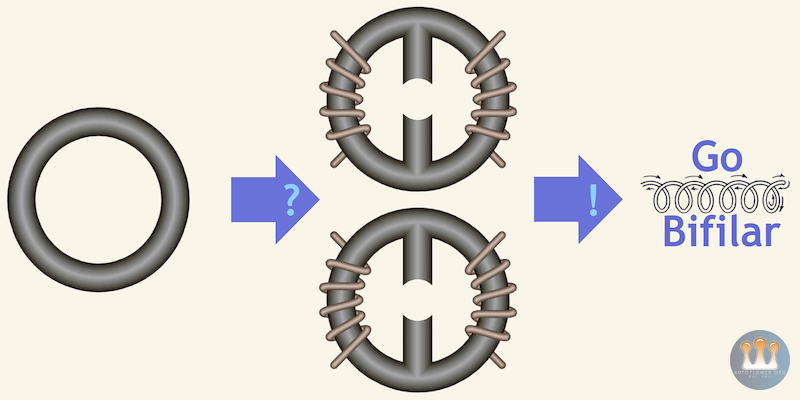

There's 2 ways to connect toroïd coils (so the final circuit will pass D.C. while attenuating A.C.) depending on how its windings were performed, plus 2 more if only a simple inductor will do; a 3rd type of setup removes the whole notion of magnetic poles and hence a need to pair them: go bifilar!
