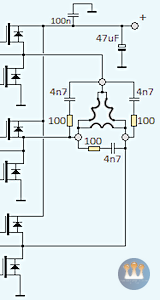

That's about the parts count for a "Half-Bridge" power stage feeding some yet-to-define 3-Phase stepper-like IH WorkLoad, properly compensated by using 3 RC "Snubber" circuits (as an EMi-wise addition).
